14(1) RW90 CU RED

CSA File #LL23462 Class 5832 03

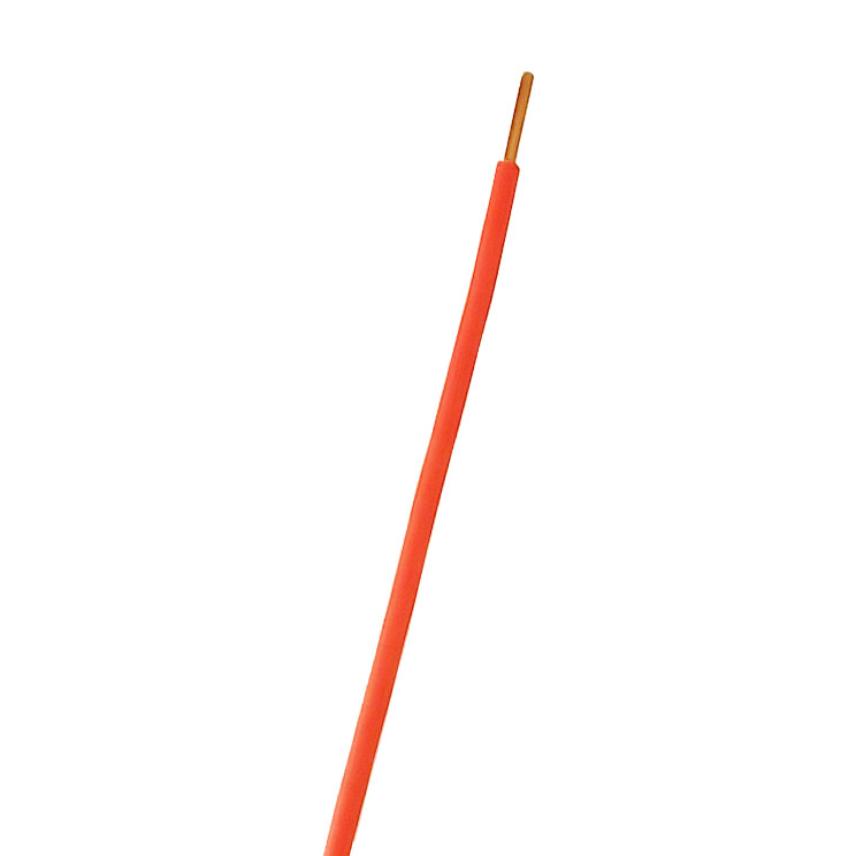

Single solid copper with low temperature moisture resisting EXELENE^® cross-linked polyethylene (XLPE) insulation.  RoHS compliant.

Colours: Standard colours are available.

Application

• For open wiring and raceways (except cabletroughs and ventilated flexible cableway) in dry or wet locations.
• Non-jacketed RW90 (XLPE) cables are not suitable for installation in vaults and switchrooms under the conditions of CE Code Part 1 Rule 12-2202(3).
• Minimum recommended installation temperature minus 40°C (with suitable handling procedures).
• Maximum conductor temperature 90°C.
• Approved for use with ceiling fixtures.
