USEB90
1C 4 AL XLP C/N YLW PVC 1000V
Nexans ref. 12000085 - Country ref. 426353
- Packaging: Reel (1100m)
- Approximate Net Weight: 440 kg/km
- Conductor Diameter (mm): 5.41
- Conductor size (AWG): 4
- External dimensions: 14.9 x 22.8 mm
- Jacket Thickness: 2.0 mm
- Neutral Construction (# x Dia.): 10 x 1.29
- Nominal insulation thickness: 1.1 mm
- Number of Strands: 0
- Reduced Neutral Construction (# x Dia.): 6 x 1.29
- Reduced Neutral Overall Dimensions: 14.9 x 22.8 mm
- Reduced neutral approximate net weight: 390 kg/km
2C 1/0 AL XLP 70% C/N PVC USEB
Nexans ref. 12001210 - Country ref. 650625
- Packaging: Reel (750m)
- Approximate Net Weight: 900 kg/km
- Conductor Diameter (mm): 8.53
- Conductor size (AWG): 1/0
- External dimensions: 18.5 x 30.0 mm
- Jacket Thickness: 2.0 mm
- Neutral Construction (# x Dia.): 25 x 1.29
- Nominal insulation thickness: 1.4 mm
- Number of Strands: 0
- Reduced Neutral Construction (# x Dia.): 15 x 1.29
- Reduced Neutral Overall Dimensions: 18.5 x 30.0 mm
- Reduced neutral approximate net weight: 780 kg/km
2C 1/0 AL XLP 70% USEB SEQ/PRT
Nexans ref. 12000513 - Country ref. 568030
- Packaging: Reel (300m)
- Approximate Net Weight: 900 kg/km
- Conductor Diameter (mm): 8.53
- Conductor size (AWG): 1/0
- External dimensions: 18.5 x 30.0 mm
- Jacket Thickness: 2.0 mm
- Neutral Construction (# x Dia.): 25 x 1.29
- Nominal insulation thickness: 1.4 mm
- Number of Strands: 2
- Reduced Neutral Construction (# x Dia.): 15 x 1.29
- Reduced Neutral Overall Dimensions: 18.5 x 30.0 mm
- Reduced neutral approximate net weight: 780 kg/km
2C 1/0 AL XLP 70% USEB SEQ/PRT
Nexans ref. 12000484 - Country ref. 446492
- Packaging: Reel (1500m)
- Approximate Net Weight: 900 kg/km
- Conductor Diameter (mm): 8.53
- Conductor size (AWG): 1/0
- External dimensions: 18.5 x 30.0 mm
- Jacket Thickness: 2.0 mm
- Neutral Construction (# x Dia.): 25 x 1.29
- Nominal insulation thickness: 1.4 mm
- Number of Strands: 2
- Reduced Neutral Construction (# x Dia.): 15 x 1.29
- Reduced Neutral Overall Dimensions: 18.5 x 30.0 mm
- Reduced neutral approximate net weight: 780 kg/km
2C 2 AL XLP 70% USEB90 SEQ/PRT
Nexans ref. 12000065 - Country ref. 335232
- Packaging: Reel (1571m)
- Approximate Net Weight: 610 kg/km
- Conductor Diameter (mm): 6.81
- Conductor size (AWG): 2
- External dimensions: 16.3 x 25.6 mm
- Jacket Thickness: 2.0 mm
- Neutral Construction (# x Dia.): 16 x 1.29
- Nominal insulation thickness: 1.1 mm
- Number of Strands: 0
- Reduced Neutral Construction (# x Dia.): 10 x 1.29
- Reduced Neutral Overall Dimensions: 16.3 x 25.6 mm
- Reduced neutral approximate net weight: 540 kg/km
2C 2 AL XLP 70% USEB90 SEQ/PRT
Nexans ref. 12000511 - Country ref. 568014
- Packaging: Reel (300m)
- Approximate Net Weight: 610 kg/km
- Conductor Diameter (mm): 6.81
- Conductor size (AWG): 2
- External dimensions: 16.3 x 25.6 mm
- Jacket Thickness: 2.0 mm
- Neutral Construction (# x Dia.): 16 x 1.29
- Nominal insulation thickness: 1.1 mm
- Number of Strands: 0
- Reduced Neutral Construction (# x Dia.): 10 x 1.29
- Reduced Neutral Overall Dimensions: 16.3 x 25.6 mm
- Reduced neutral approximate net weight: 540 kg/km
2C 2 AL XLP 70% USEB90 SEQ/PRT
Nexans ref. 12000451 - Country ref. 568097
- Packaging: Reel (900m)
- Approximate Net Weight: 610 kg/km
- Conductor Diameter (mm): 6.81
- Conductor size (AWG): 2
- External dimensions: 16.3 x 25.6 mm
- Jacket Thickness: 2.0 mm
- Neutral Construction (# x Dia.): 16 x 1.29
- Nominal insulation thickness: 1.1 mm
- Number of Strands: 0
- Reduced Neutral Construction (# x Dia.): 10 x 1.29
- Reduced Neutral Overall Dimensions: 16.3 x 25.6 mm
- Reduced neutral approximate net weight: 540 kg/km
2C 2/0 AL XLP 70% C/N USEB-90
Nexans ref. 12000878 - Country ref. 650007
- Packaging: Reel (1200m)
- Approximate Net Weight: 1100 kg/km
- Conductor Diameter (mm): 9.55
- Conductor size (AWG): 2/0
- External dimensions: 20.2 x 32.8 mm
- Jacket Thickness: 2.0 mm
- Neutral Construction (# x Dia.): 20 x 1.63
- Nominal insulation thickness: 1.4 mm
- Number of Strands: 2
- Reduced Neutral Construction (# x Dia.): 19 x 1.29
- Reduced Neutral Overall Dimensions: 19.6 x 32.2 mm
- Reduced neutral approximate net weight: 920 kg/km
2C 2/0 AL XLP 70% USEB-90
Nexans ref. 12000514 - Country ref. 568055
- Packaging: Reel (300m)
- Approximate Net Weight: 1100 kg/km
- Conductor Diameter (mm): 9.55
- Conductor size (AWG): 2/0
- External dimensions: 20.2 x 32.8 mm
- Jacket Thickness: 2.0 mm
- Neutral Construction (# x Dia.): 20 x 1.63
- Nominal insulation thickness: 1.4 mm
- Number of Strands: 2
- Reduced Neutral Construction (# x Dia.): 19 x 1.29
- Reduced Neutral Overall Dimensions: 19.6 x 32.2 mm
- Reduced neutral approximate net weight: 920 kg/km
2C 4/0 AL XLP 70% C/N USEB-90
Nexans ref. 12001209 - Country ref. 650626
- Packaging: Reel (500m)
- Approximate Net Weight: 1600 kg/km
- Conductor Diameter (mm): 12.10
- Conductor size (AWG): 4/0
- External dimensions: 23.6 x 38.8 mm
- Jacket Thickness: 2.0 mm
- Neutral Construction (# x Dia.): 20 x 2.05
- Nominal insulation thickness: 1.4 mm
- Number of Strands: 2
- Reduced Neutral Construction (# x Dia.): 19 x 1.63
- Reduced Neutral Overall Dimensions: 22.8 x 37.8 mm
- Reduced neutral approximate net weight: 1340 kg/km
2C 4/0 AL XLP 70% USEB SEQ/PRT
Nexans ref. 12000515 - Country ref. 568071
- Packaging: Reel (300m)
- Approximate Net Weight: 1600 kg/km
- Conductor Diameter (mm): 12.10
- Conductor size (AWG): 4/0
- External dimensions: 23.6 x 38.8 mm
- Jacket Thickness: 2.0 mm
- Neutral Construction (# x Dia.): 20 x 2.05
- Nominal insulation thickness: 1.4 mm
- Number of Strands: 2
- Reduced Neutral Construction (# x Dia.): 19 x 1.63
- Reduced Neutral Overall Dimensions: 22.8 x 37.8 mm
- Reduced neutral approximate net weight: 1340 kg/km
2C 4/0 AL XLP 70% USEB-90
Nexans ref. 12000483 - Country ref. 568089
- Packaging: Reel (1000m)
- Approximate Net Weight: 1600 kg/km
- Conductor Diameter (mm): 12.10
- Conductor size (AWG): 4/0
- External dimensions: 23.6 x 38.8 mm
- Jacket Thickness: 2.0 mm
- Neutral Construction (# x Dia.): 20 x 2.05
- Nominal insulation thickness: 1.4 mm
- Number of Strands: 0
- Reduced Neutral Construction (# x Dia.): 19 x 1.63
- Reduced Neutral Overall Dimensions: 22.8 x 37.8 mm
- Reduced neutral approximate net weight: 1340 kg/km
2C300 AL XLP C/N 70% PVC
Nexans ref. 12000004 - Country ref. 348383
- Packaging: Reel (300m)
- Approximate Net Weight: - kg/km
- Conductor Diameter (mm): 14.50
- Conductor size (AWG): 300
- External dimensions:
- Jacket Thickness: 2.6 mm
- Neutral Construction (# x Dia.):
- Nominal insulation thickness: 1.7 mm
- Number of Strands: 2
- Reduced Neutral Construction (# x Dia.): 20 x 2.05
- Reduced Neutral Overall Dimensions: 26.9 x 44.8 mm
- Reduced neutral approximate net weight: 1900 kg/km
2C300 CMPT AL XLP C/N 70% PVC
Nexans ref. 12000552 - Country ref. 601828
- Packaging: Reel (500m)
- Approximate Net Weight: 2001 kg/km
- Conductor Diameter (mm): 14.50
- Conductor size (AWG): 300
- External dimensions: -
- Jacket Thickness: 2.6 mm
- Neutral Construction (# x Dia.): -
- Nominal insulation thickness: 1.7 mm
- Number of Strands: 2
- Reduced Neutral Construction (# x Dia.): 20 x 2.05
- Reduced Neutral Overall Dimensions: 26.9 x 44.8 mm
- Reduced neutral approximate net weight: 1900 kg/km
2C300 CMPT AL XLP C/N 70% PVC
Nexans ref. 12001198 - Country ref. 652759
- Packaging: Reel (1000m)
- Approximate Net Weight: 2001 kg/km
- Conductor Diameter (mm): 14.50
- Conductor size (AWG): 300
- External dimensions: -
- Jacket Thickness: 2.6 mm
- Neutral Construction (# x Dia.): -
- Nominal insulation thickness: 1.7 mm
- Number of Strands: 2
- Reduced Neutral Construction (# x Dia.): 20 x 2.05
- Reduced Neutral Overall Dimensions: 26.9 x 44.8 mm
- Reduced neutral approximate net weight: 1900 kg/km
Description
Description
Standards
-

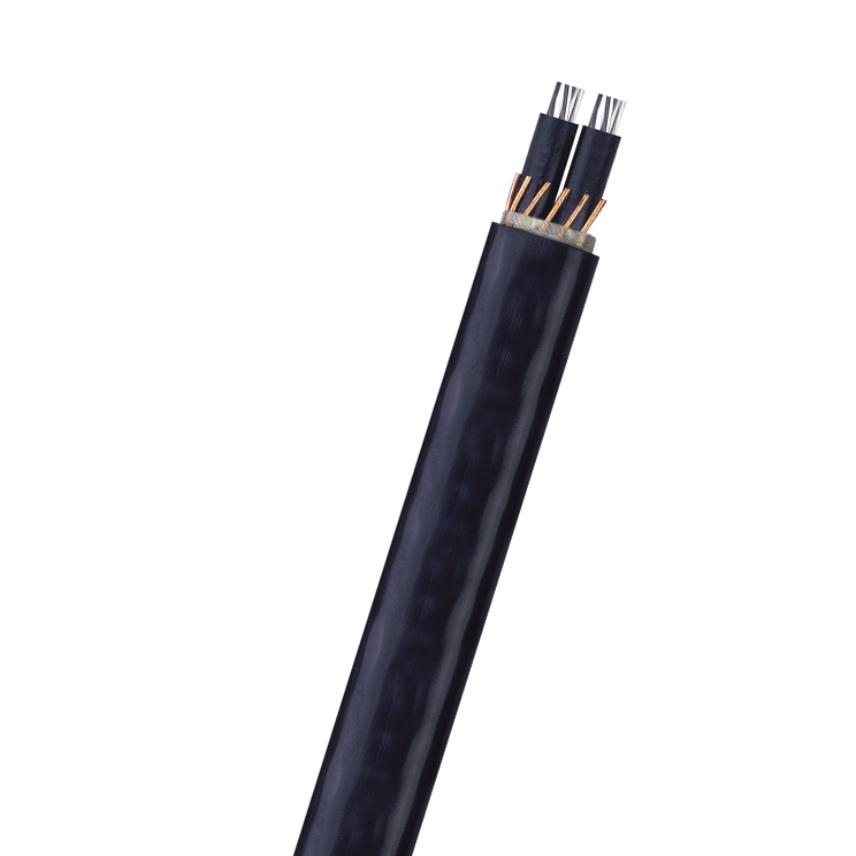

ProductCSA C22.2 N° 52
- Compact stranded aluminum conductors
- Black cross-linked polyethylene insulation with colour coded stripe
- Full or reduced copper concentric neutral conductor
- Black sunlight resistant PVC jacket
- 600 Volts
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor Material
Aluminum
Insulation
PVC or XLPE
Insulation Colour
Black
Electrical characteristics
Electrical characteristics
Maximum operating voltage
600 V
Usage characteristics
Usage characteristics
Maximum operating temperature
90 °C
