RW90 Tray Cable

Products

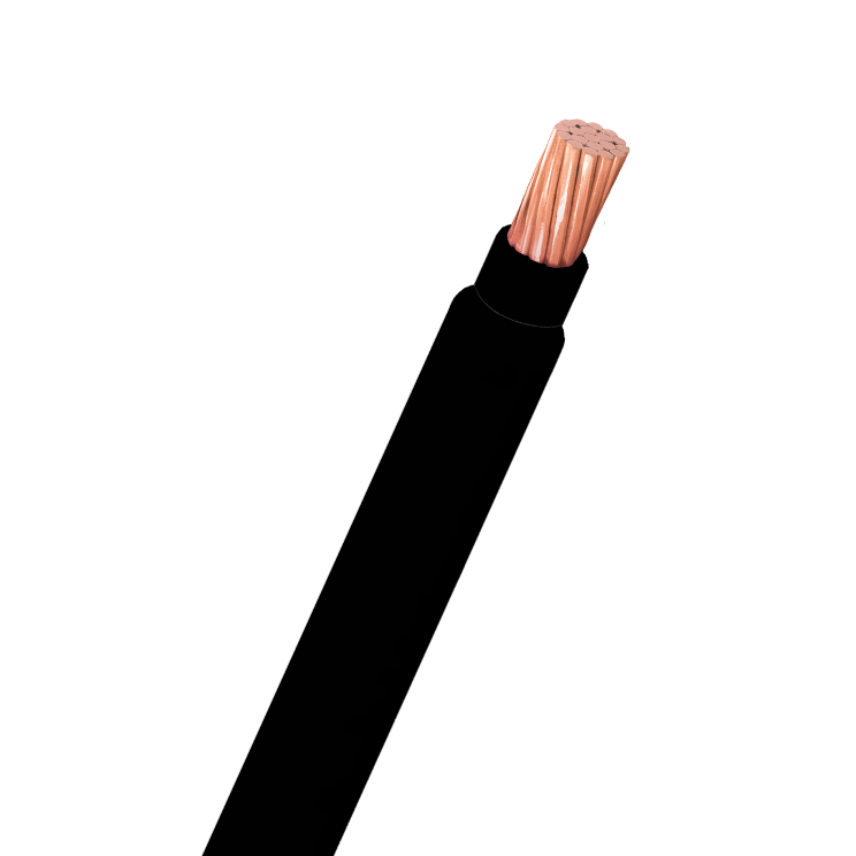

1/0(18) RW90 TC BLK

Nexans ref. 12014910

  • Packaging: Reel (m)
  • Jacket Colour: Black
  • Approximate Net Weight: 623 kg/km
  • Cable Diameter: 15.09 mm
  • Conductor Diameter (mm): 9.47
  • Conductor size (AWG): 1/0 AWG
  • Jacket Thickness: 1.14 mm
  • Nominal insulation thickness: 2.03 mm
  • Number of Strands: 18

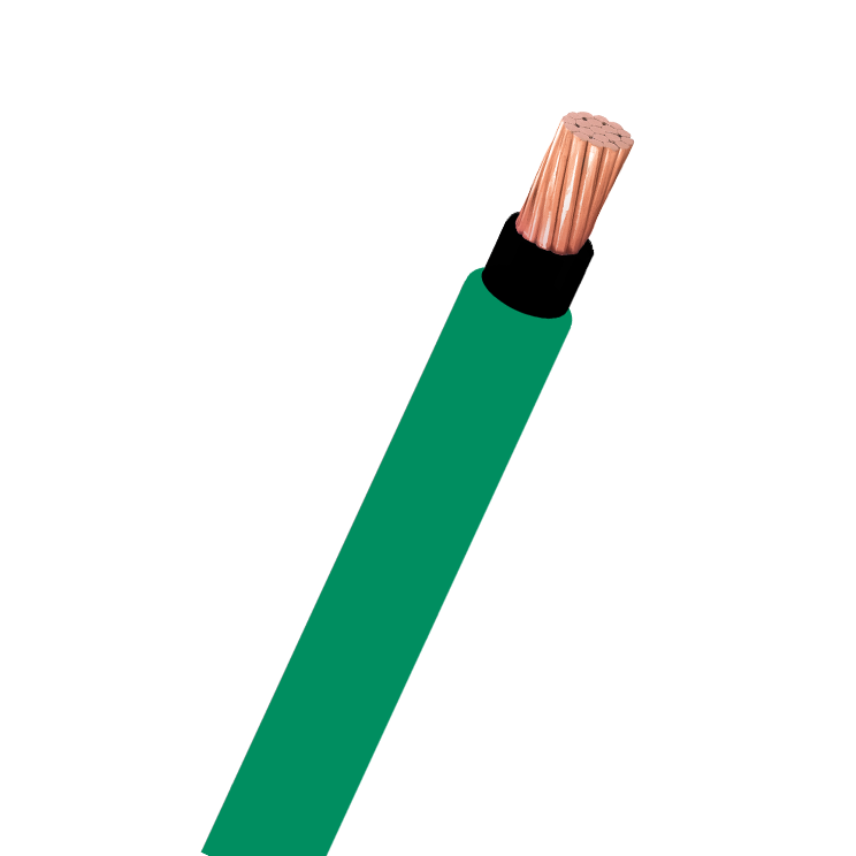

1/0(18) RW90 TC GRN

Nexans ref. 12014919

  • Packaging: Reel (m)
  • Jacket Colour: Green
  • Approximate Net Weight: 623 kg/km
  • Cable Diameter: 15.09 mm
  • Conductor Diameter (mm): 9.47
  • Conductor size (AWG): 1/0 AWG
  • Jacket Thickness: 1.14 mm
  • Nominal insulation thickness: 2.03 mm
  • Number of Strands: 18



1000(61) RW90 TC BLK

Nexans ref. 12014918

  • Packaging: Reel (m)
  • Jacket Colour: Black
  • Approximate Net Weight: 5057 kg/km
  • Cable Diameter: 35.61 mm
  • Conductor Diameter (mm): 29.26
  • Conductor size (AWG): 1000 KCMIL
  • Jacket Thickness: 1.65 mm
  • Nominal insulation thickness: 2.28 mm
  • Number of Strands: 61



1000(61) RW90 TC GRN

Nexans ref. 12014927

  • Packaging: Reel (m)
  • Jacket Colour: Green
  • Approximate Net Weight: 5057 kg/km
  • Cable Diameter: 35.61 mm
  • Conductor Diameter (mm): 29.26
  • Conductor size (AWG): 1000 KCMIL
  • Jacket Thickness: 1.65 mm
  • Nominal insulation thickness: 2.28 mm
  • Number of Strands: 61



2/0(18) RW90 TC BLK

Nexans ref. 12014911

  • Packaging: Reel (m)
  • Jacket Colour: Black
  • Approximate Net Weight: 757 kg/km
  • Cable Diameter: 16 mm
  • Conductor Diameter (mm): 10.64
  • Conductor size (AWG): 2/0 AWG
  • Jacket Thickness: 1.14 mm
  • Nominal insulation thickness: 2.03 mm
  • Number of Strands: 18



2/0(18) RW90 TC GRN

Nexans ref. 12014920

  • Packaging: Reel (m)
  • Jacket Colour: Green
  • Approximate Net Weight: 757 kg/km
  • Cable Diameter: 16 mm
  • Conductor Diameter (mm): 10.64
  • Conductor size (AWG): 2/0 AWG
  • Jacket Thickness: 1.14 mm
  • Nominal insulation thickness: 2.03 mm
  • Number of Strands: 18



250(37) RW90 TC BLK

Nexans ref. 12014914

  • Packaging: Reel (m)
  • Jacket Colour: Black
  • Approximate Net Weight: 1400 kg/km
  • Cable Diameter: 21.76 mm
  • Conductor Diameter (mm): 14.61
  • Conductor size (AWG): 250 KCMIL
  • Jacket Thickness: 1.65 mm
  • Nominal insulation thickness: 2.28 mm
  • Number of Strands: 37



250(37) RW90 TC GRN

Nexans ref. 12014923

  • Packaging: Reel (m)
  • Jacket Colour: Green
  • Approximate Net Weight: 1400 kg/km
  • Cable Diameter: 21.76 mm
  • Conductor Diameter (mm): 14.61
  • Conductor size (AWG): 250 KCMIL
  • Jacket Thickness: 1.65 mm
  • Nominal insulation thickness: 2.28 mm
  • Number of Strands: 37



3/0(18) RW90 TC BLK

Nexans ref. 12014912

  • Packaging: Reel (m)
  • Jacket Colour: Black
  • Approximate Net Weight: 930 kg/km
  • Cable Diameter: 17.18 mm
  • Conductor Diameter (mm): 11.94
  • Conductor size (AWG): 3/0 AWG
  • Jacket Thickness: 1.14 mm
  • Nominal insulation thickness: 2.03 mm
  • Number of Strands: 18



3/0(18) RW90 TC GRN

Nexans ref. 12014921

  • Packaging: Reel (m)
  • Jacket Colour: Green
  • Approximate Net Weight: 930 kg/km
  • Cable Diameter: 17.18 mm
  • Conductor Diameter (mm): 11.94
  • Conductor size (AWG): 3/0 AWG
  • Jacket Thickness: 1.14 mm
  • Nominal insulation thickness: 2.03 mm
  • Number of Strands: 18



350(37) RW90 TC BLK

Nexans ref. 12014915

  • Packaging: Reel (m)
  • Jacket Colour: Black
  • Approximate Net Weight: 1897 kg/km
  • Cable Diameter: 24.26 mm
  • Conductor Diameter (mm): 16.00
  • Conductor size (AWG): 350 KCMIL
  • Jacket Thickness: 1.65 mm
  • Nominal insulation thickness: 2.28 mm
  • Number of Strands: 37



350(37) RW90 TC GRN

Nexans ref. 12014924

  • Packaging: Reel (m)
  • Jacket Colour: Green
  • Approximate Net Weight: 1897 kg/km
  • Cable Diameter: 24.26 mm
  • Conductor Diameter (mm): 16.00
  • Conductor size (AWG): 350 KCMIL
  • Jacket Thickness: 1.65 mm
  • Nominal insulation thickness: 2.28 mm
  • Number of Strands: 37



4/0(18) RW90 TC BLK

Nexans ref. 12014913

  • Packaging: Reel (m)
  • Jacket Colour: Black
  • Approximate Net Weight: 1159 kg/km
  • Cable Diameter: 19.08 mm
  • Conductor Diameter (mm): 13.41
  • Conductor size (AWG): 4/0 AWG
  • Jacket Thickness: 1.14 mm
  • Nominal insulation thickness: 2.03 mm
  • Number of Strands: 18



4/0(18) RW90 TC GRN

Nexans ref. 12014922

  • Packaging: Reel (m)
  • Jacket Colour: Green
  • Approximate Net Weight: 1159 kg/km
  • Cable Diameter: 19.08 mm
  • Conductor Diameter (mm): 13.41
  • Conductor size (AWG): 4/0 AWG
  • Jacket Thickness: 1.14 mm
  • Nominal insulation thickness: 2.03 mm
  • Number of Strands: 18



500(37) RW90 TC BLK

Nexans ref. 12014916

  • Packaging: Reel (m)
  • Jacket Colour: Black
  • Approximate Net Weight: 2633 kg/km
  • Cable Diameter: 27.42 mm
  • Conductor Diameter (mm): 17.30
  • Conductor size (AWG): 500 KCMIL
  • Jacket Thickness: 1.65 mm
  • Nominal insulation thickness: 2.28 mm
  • Number of Strands: 37



500(37) RW90 TC GRN

Nexans ref. 12014925

  • Packaging: Reel (m)
  • Jacket Colour: Green
  • Approximate Net Weight: 2633 kg/km
  • Cable Diameter: 27.42 mm
  • Conductor Diameter (mm): 17.30
  • Conductor size (AWG): 500 KCMIL
  • Jacket Thickness: 1.65 mm
  • Nominal insulation thickness: 2.28 mm
  • Number of Strands: 37



750(61) RW90 TC BLK

Nexans ref. 12014917

  • Packaging: Reel (m)
  • Jacket Colour: Black
  • Approximate Net Weight: 3852 kg/km
  • Cable Diameter: 31.95 mm
  • Conductor Diameter (mm): 25.35
  • Conductor size (AWG): 750 KCMIL
  • Jacket Thickness: 1.65 mm
  • Nominal insulation thickness: 2.28 mm
  • Number of Strands: 61



750(61) RW90 TC GRN

Nexans ref. 12014926

  • Packaging: Reel (m)
  • Jacket Colour: Green
  • Approximate Net Weight: 3852 kg/km
  • Cable Diameter: 31.95 mm
  • Conductor Diameter (mm): 25.35
  • Conductor size (AWG): 750 KCMIL
  • Jacket Thickness: 1.65 mm
  • Nominal insulation thickness: 2.28 mm
  • Number of Strands: 61



Description

Description

Standards

  • Product
    CSA C22.2 N° 230; CSA C22.2 N° 38

Description

Single copper conductor with low temperature XLPE insulation and a sunlight resistant PVC jacket.

Voltage: 1 kV

Sizes: 1/0 AWG – 1000 kcmil

An unarmoured, flexible, compact, and reliable cable suitable for cable tray installations. This cable is smaller and lighter than conventional armoured industrial cables, making installation in cable trays easy and cost-effective.

These approved cables have undergone additional testing to ensure compliance with the rigorous performance requirements of CSA C22.2 No. 230 for Tray Cables. Nexans RW90 TC meet the following performance tests:

  • FT4 Flame Spread
  • Mechanical Damage – Impact
  • Mechanical Damage – Crush
  • Weather Resistance
  • Cold Impact at -40C
  • Oil Resistance

Standard colours are available.

RoHS compliant.

Applications

  • For open wiring, raceways, and cable tray (ventilated, non-ventilated, and ladder-type) installations in dry or wet locations.
  • Suitable for installations in accordance with CE Code Rule 12-2202.
  • 90°C conductor operating temperature.
  • -40°C minimum installation temperature (with suitable handling procedures).
  • Sunlight resistant (SR)
  • FT4 flame spread rating
  • Suitable for direct burial

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor Material
Copper
Insulation
XLPE
Insulation Colour
Black

Electrical characteristics

Electrical characteristics

Maximum operating voltage
1000 V

Usage characteristics

Usage characteristics

Maximum operating temperature
90 °C
Minimum installation temperature
-40 °C
