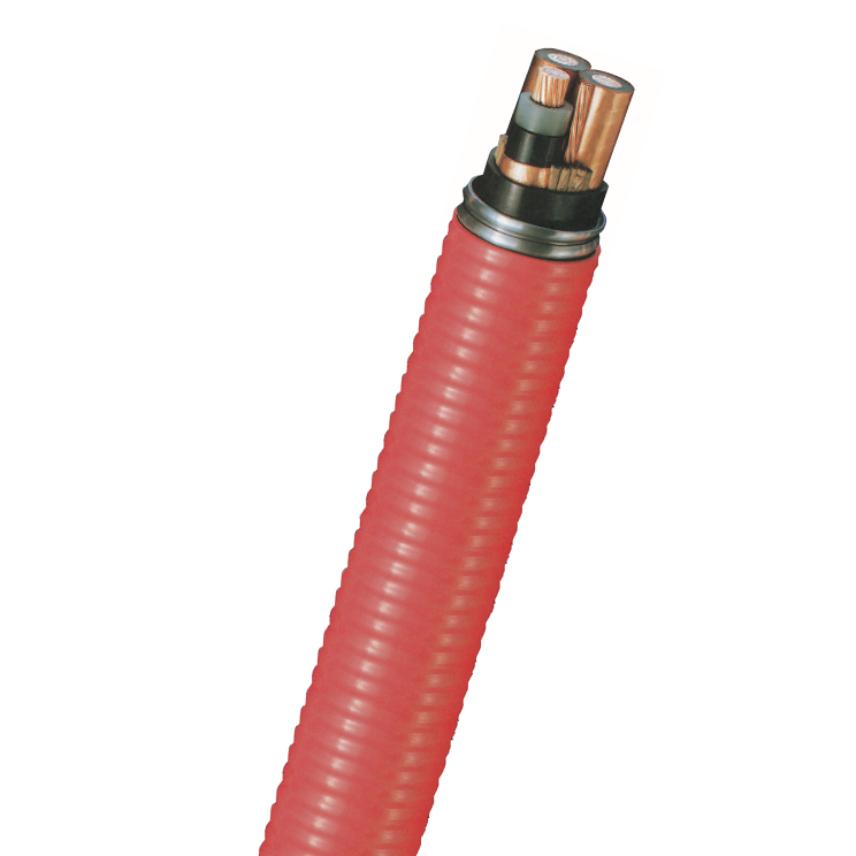

Medium Voltage Armoured Power Cable

Nexans Medium Voltage (MV) power cables are CSA certified to the requirements of CSA standard C68.10, and are suitable for a wide range of commercial and industrial applications, including all hazardous locations.

Applications

Nexans power cables are intended for use in various primary and secondary industries, including chemical processing plants, pulp and paper, refineries and general factory environments including areas where cables are subject to the risk of mechanical damage and chemical attack.

Commercial applications for Nexans MV power cables include apartment buildings and commercial complexes.

Nexans MV power cables can be used in both dry and wet locations in open wiring, in ventilated, non-ventilated and ladder-type cable troughs, in ventilated flexible cableways, and for direct burial.

Nexans MV power cables are also suitable for service entrance installations - above and below ground.

Nexans MV power cables utilize low flame spread PVC jacket compounds to ensure maximum safety to personnel and equipment in the event of fire.

Highlights

Nexans MV power cables are:

• Versatile
• Resistant to Mechanical Abuse and Corrosion
• “FT1” and "FT4" rated
• Hazardous Location “HL” rated
• Sunlight Resistant “SR” rated
• 105°C to -40°C
• LEAD FREE
• RoHS compliant

Marking and Identification

The outer jackets of Nexans MV power cables are printed: (month/year) NEXANS number of conductors, conductor size, conductor material, “CPT” TRXLPE (CSA), voltage rating, nominal insulation thickness, LTGG SR FT1 FT4 HL along with lightning bolt symbol, and sequential meter marking.

Outer Jacket Colour:

Orange - 5 kV 100%

Black - 5 kV 133% / 8 kV 100% and 8 kV 133%

Red - 15 kV 100% and 15 kV 133%

Other jacket colours are available on request.
